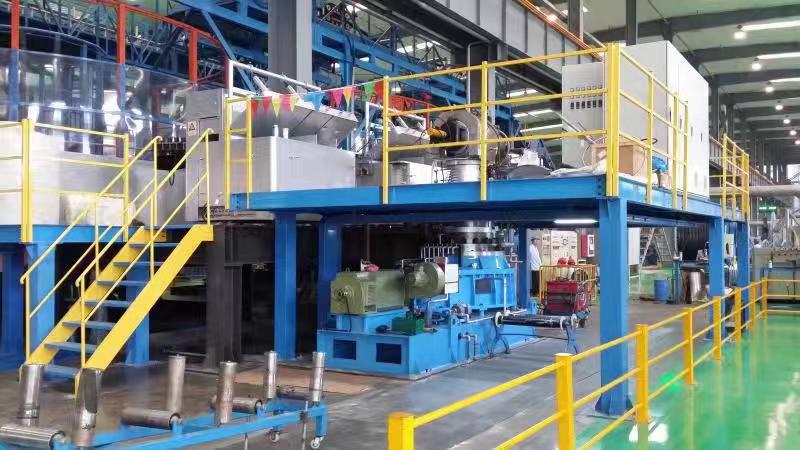

This blog uses YQL-Φ100 / 5 continuous lead extruder as an example to list the main features of the company's continuous lead extruder. The purpose is to provide customers with more information about the product. This is the first one, and there are other related articles to browse later:

1. Loading Unit with Rollers

It conveys raw material with side transfer, driven by motor, it is convenient for storing the lead ingot and easy for operator, which reduce the labor strength, moreover it is equipped with the clips for lead ingot.

The skid for inlet lead ingot is fixed on the slanting support frame so that lead ingot can easily slip into the pot.

2. 10T lead melting furnace

3.       ΩPipe

It is used to transfer lead between the melting pot and the purifying & holding pot, and between the purifying and holding pot and the extruding machine. The lead transfer pipe is shaped like Ω Because it expands due to heating while the molten lead is heated in the holding pot and lead transfer pipe .

Material of Ω pipe is molded with seamless steel tube with good quality and without crack lines; at external Ω pipe is wrapped with the special heaters for heating, which has equal and good heat conductivity, moreover the heating unit is not easily damaged, meanwhile at two ends of Ω pipe are mounted two temperature checking points, in which temperature checking thermal couples are set.

On top of Ω pipe is mounted an additional manual temperature checking point to revise temperature. At the lead inlet entry to the host extruding machine there is a stearic container so that it can satisfy processing requirements that cleans up the impurity etc. in the pipe during production.

4. Operation Direction

It’s up to users.

5. Machine’s Color

Do as per color panel from users.
