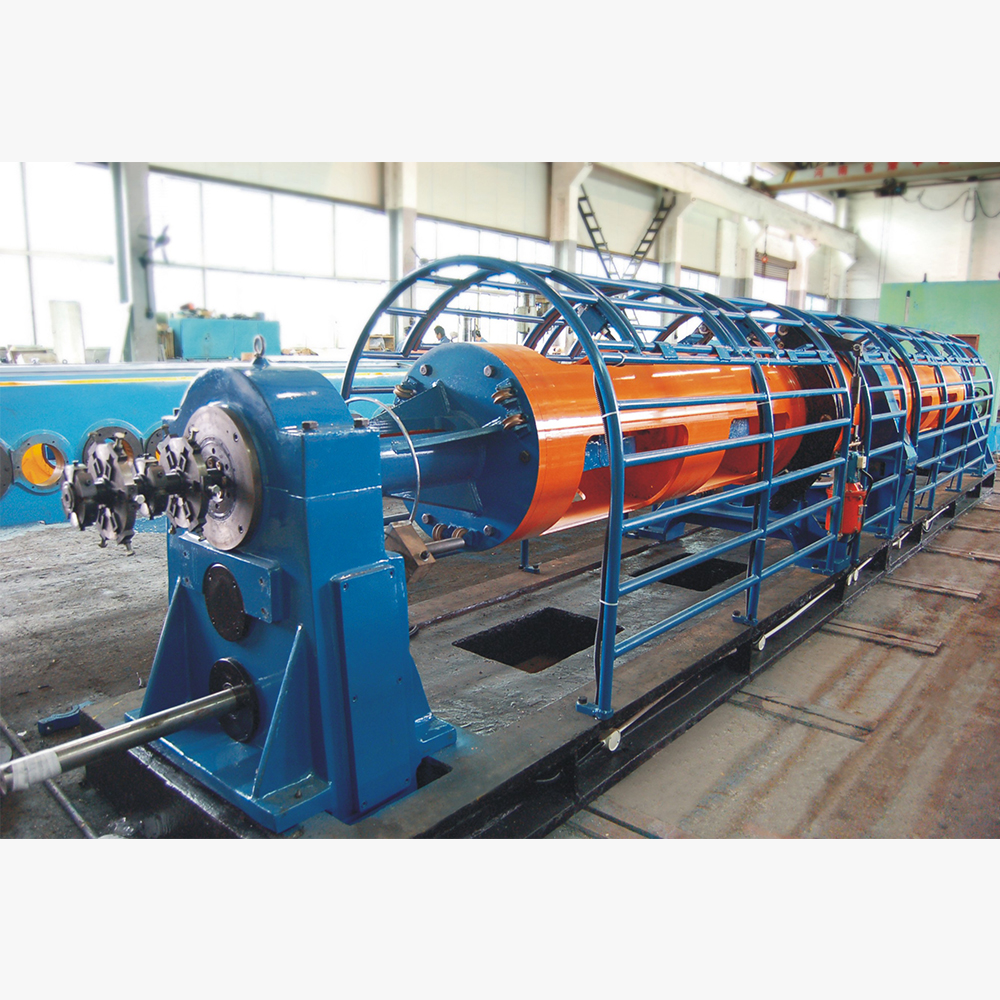

Tubular Strander Type 6JG-400
Product Description:
Tubular stranding machines have played the dominant role in the wire rope industry and they are essential for the manufacture of steel wire strand and rope. Whereas they were previously used mainly for the production of strand, today wire stranding machine is also used more and more for the closing of ropes, due to their greater effectiveness when compared to cage type stranding machines. Due to the ease of their handling during product changeover operations, high-speed stranding machines of all types are particularly flexible and suitable for users having continuously changing production programmes with a broad product spectrum and short production lengths.
Specification Parameters:
Bobbin diameter
∮400mm
Single wire diameter
Copper:∮1.0~∮2.5mm
Aluminum:∮1.36~∮4mm
Stranding diameter
∮3.0~∮12mm
Rotor speed
600rpm
Haul-off capstan diameter
∮800mm
Delivery speed
12.03~104.97m/min
Stranding pitch
20.06~174.94mm
Features:
1. machines are driven by frequency controlled three-phase motors, providing separate drives to the stranding rotor, haul-off and take-up assemblies meaning that gears and transmissions are no longer required for this purpose.
2. digital control technology enables the infinitely variable lay-length to be set from the control desk.
3. speeds can be infinitely varied from the control desk position during the operation of the machine.
4. touch screen control via programmable controllers provides fully automatic process control and operation, machine monitoring, programme management, data recording and storage, service functions and maintenance.
5. speed and angle synchronisation, torque- and traction control.
6. maintenance of all product related quality parameters at all times ensured by controlled machine braking, including in the event of an electrical failure (AC drive versions).
In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co.,Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.
Application and composition:
1. Tubular strander machine is used mainly for the production of compacted and non-compacted strands made from bright, galvanized or stainless steel wire,compacted or non-compacted ropes manufactured from steel wire strands,conveyor belt insert ropes,pre-stressed and non-stressed,elevator ropes,bowden strand,special ropes.
2. The high speed tubular stranding machines are mainly composed of pay-off stand, rotors, forming die, length counter, haul-off capstan, take-up & traversing device, protecting cover, wire breaking stop system, electrical panel, etc.
FAQ:
Q1. What information should I let you know if I want to get a quotation?
A: Item Name,Size,Initial Quality you require.
Q2. How to make the payment?
A: T/T
Q3. When will you deliver the machine?
A: Delivery Time for 3 months.
